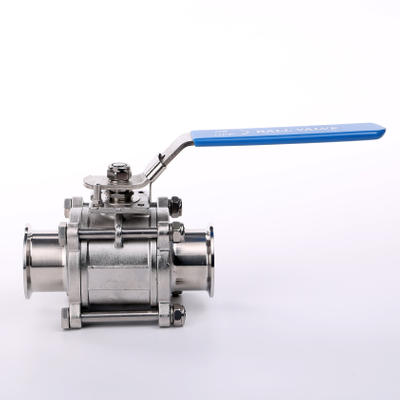

Stainless Steel Hygienic 3PCS Pipeline Ball Valves

3-piece sanitary ball valve with ISO direct mounting pad is designed for food biological, pharmaceutics or similar industries.
Model:
DY-BV3P
Contact Now
Stainless Steel Hygienic 3PCS Pipeline Ball Valves
Stainless Steel Hygienic 3PCS Pipeline Ball Valves
Stainless Steel Hygienic 3PCS Pipeline Ball Valves

Application

3-piece sanitary ball valve with ISO direct mounting pad is designed for food biological, pharmaceutics or similar industries. The cavity filled seat option will help not to remain the media in the body cavity to keep from spoiling or mixing. Cavity filler seats will also help to clean the valve port easily.

The options on end types can be T-Clamp, Tube weld end, Extended tube weld end. Different material of soft kits will be applicable for different working circumstance.

ASME/ BPE (for SS316L) standard are available on 302SD, with low ferrite ( 3%), and low sulphur (0.005% to 0.017%). The finish are available for Ra 40 uin or Ra 25 u-in.

The standard bare stem type is well designed for mounting actuator directly.

DEYI offer pneumatic/ electric actuator and limit switch box/ solenoid valve/ modulating controller....assembling without further charge.

Technical parameters:

Design and features

  • Body & end caps quality investment casting
  • with ISO 5211 direct mounting pad
  • Adjustable stem packing
  • Available in stainless steel or carbon steel
  • Blow-out proof stem design
  • 100% air tested under water at 80-100 psi
  • with locking function
  • End type: T-Clamp, Tube weld, Extended tube weld 6 bolts & nuts for 4" valve
Working pressure 1000/ 800/ 600 psi
Temperature range (PTFE)  -20F to 350F
Temperature range (TFM) -20F to 420F

Options

Spring return handle (dead man handle)
Oval handle
Cavity filled seats
Polish to custom's specification
ASME/ BPE (for SS316L)
low ferrite ( 3%)
low sulphur (0.005% to 0.017%)

Automation application

PTFE/ PFA coating (40-70 um)
Hastalloy C/ Super duplex/ Alloy 20/ Monel
