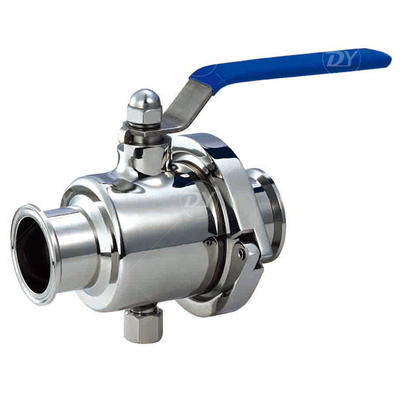

Stainless Steel Sanitary Non Retention Ball Valve
Both manual and automatic operated hygienic ball valves are mainly used in processing beverage, wine, oil refining, cosmetics and chemical industries. The non retention ball valve has features of easy cleaning, easy maintenance and light weight.
Inquire
Application
Both manual and automatic operated hygienic ball valves are mainly used in processing beverage, wine, oil refining, cosmetics and chemical industries. The non retention ball valve has features of easy cleaning, easy maintenance and light weight.
Technical parameters
| Featuras | Valve stem anti-flying design | ||||
| The connection between valve body and bonnet with positioning stage design | |||||
| Circulation | |||||
| No retention design | |||||
| Stem seal packing with compensating device | |||||
| padlock device | |||||
| Design Standard | ISO5211 | ||||
| ISO2037-92 | |||||
| Test And Inspection Standards | GB/T13927-2008 | ||||
| Working Principle | With the 90° rotary handle,drive the precise manufacturing ball body which with through cavity,turn on/off,so that can control the medium flow | ||||
| Material | Steel Part | 304/316L | |||
| Gasket | PTFE/SILICON | ||||
