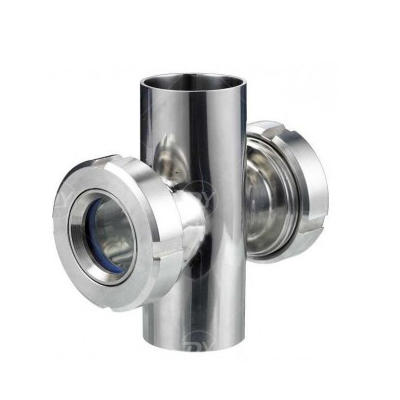

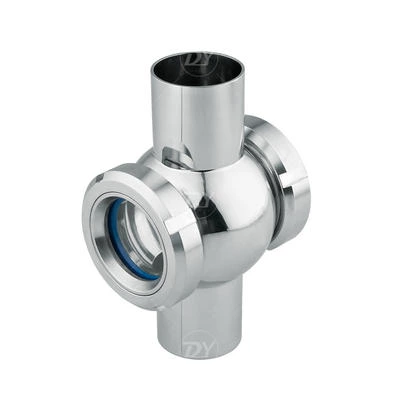

Stainless Steel Sanitary Cross Sight Glass

The sight glass is widely used in food, wine-producing, beverage and pharmacy industries etc. For it is convenient to view the condition of equipment running state and system work state

Application

The sight glass is widely used in food, wine-producing, beverage and pharmacy industries etc. For it is convenient to view the condition of equipment running state and system work state.

Standard design

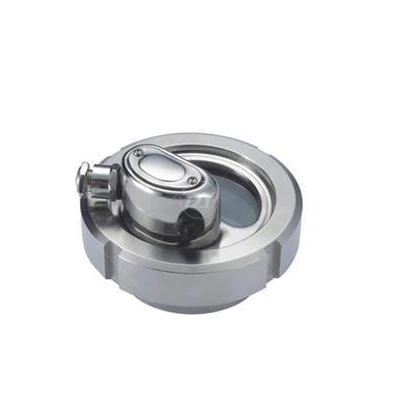

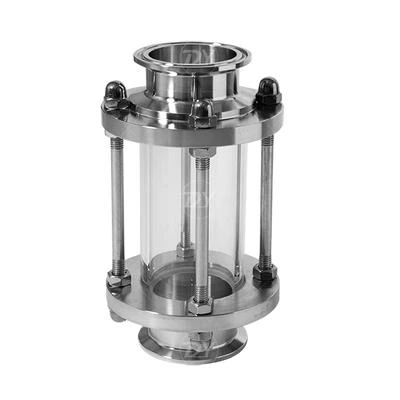

We have straight sight glass, sight glass with lamp and cross sight glass. The straight sight glass can be installed in horizontal or vertical, It also can 360 degree view through the glass  defence. It is suitable for on-line view of the pipeline. Sight glass with lamp is a type of sight glass with union. It can work under the lower light and disassembling easily. So it is suitable to the view of tank equipment.

Technical parameters

Working temperature: -20~ +135℃ (EPDM gasket)

Steel parts: SS304 or SS316L

The material of glass: silicon boride glass, tempered glass ( union sight glass)

Seal: EPDM, Silicone. If special environment, plz let me know, we can adjust the sealing according the actual situation

Size: 1”-6” or DN25-DN150

Connection type: weld, clamp, thread, flange, or combinations
