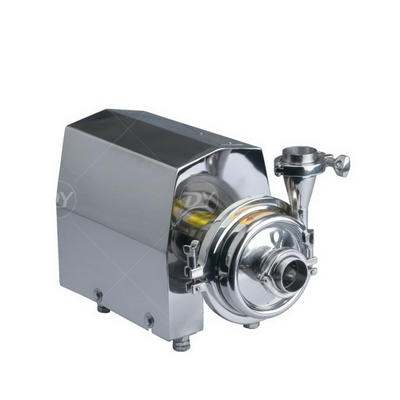

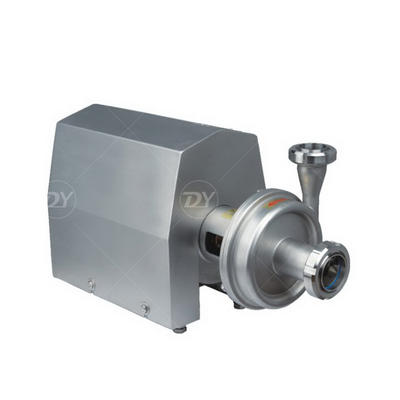

Sanitary Stainless Steel Food Grade Centrifugal Pump

The centrifugal pump is manufactured in stainless steel and with a hrounded motor.It is sanitary and cost-efficient design makes it perfect for dairies, beverages, food-processing, pharmaceutical and fine chemicals industries
Model:
Contact Now
Sanitary Stainless Steel Food Grade Centrifugal Pump
Sanitary Stainless Steel Food Grade Centrifugal Pump
Sanitary Stainless Steel Food Grade Centrifugal Pump
Sanitary Stainless Steel Food Grade Centrifugal Pump

Application

The centrifugal pump is manufactured in stainless steel and with a hrounded motor.It is sanitary and cost-efficient design makes it perfect for dairies, beverages, food-processing, pharmaceutical and fine chemicals industries

Technical specifications

Part material contact with pumped media: AISI316L/304

Gasket: EPDM, FPM, NBR, etc.,

Impeller design: open type, or close type!

Mechanical seal(standard): C/SIC/EPDM

Mechanical seal mode: Single mechanical seal. ( Flushed double mechanical seal are available.)

Inside surface finishing: Ra ≤0.8μm

Inlet & outlet connection: TC, union, flange

Outside surface finishing: Sandblast or mirror polish.

Operating principles: Housed inside the casing, the impeller rotates in conjunction with the pump shaft. With this arrangement, the impeller blades convey energy to the fluid in the form of kinetic energy and pressure energy.

This pump is not reversible by simple reversal of the direction of rotation. The direction of rotation is clockwise when the pump is viewed from the rear side of the motor.

Max. flow: 130m3/H

Max. head: 70H(m) for open impeller, 100H(m)for close impeller

Max. temperature: 120℃

Max. rev: 3600min

Design and features

Casting manufactured with cold-formed plate. Open impeller and close impeller manufactured with stainless steel investment casting.

Adjustable stainless steel legs.
