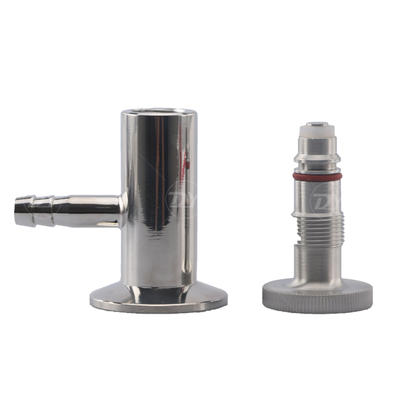

Sanitary Stainless Steel Sampling Valve

Sampling valve is mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains.
Model:
SPV1-C/T
Contact Now
Sanitary Stainless Steel Sampling Valve
Sanitary Stainless Steel Sampling Valve
Sanitary Stainless Steel Sampling Valve
Sanitary Stainless Steel Sampling Valve
Sanitary Stainless Steel Sampling Valve

Applications

Sanitary stainless steel sampling valve is mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains. The sample is available in both manual and pneumatic versions. Various process connections are standard. The outlet connection is a type hose piece, but can be replaced with other types for flexibility.

Technical parameters

Connection type: thread, clamp, weld

Max. pressure: 10bar (145psi)

Min. pressure: vacuum

Working temperature: -10℃ to +120℃

Working mode: manual, or pneumatic

Size: 1/4”, 1/2”,1”1 1/2”2”

Body material: SS316L / SS304

Seal material: PTFE, EPDM, SILICONE

Internal surface finish: Ra 0.4μm
