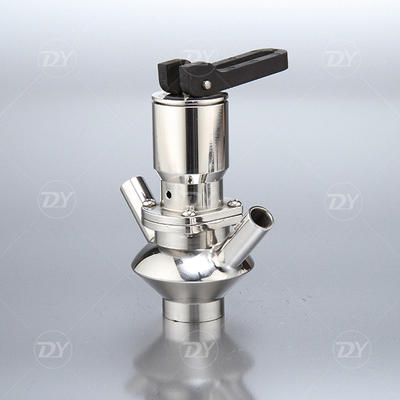

Sanitary SS Aseptic Sampling Cock Valve

Sampling valve is mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains.

Applications

Sampling valve is mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains. The valve is available for tank welding and there is a choice between pneumatic or manual operation. PTFE sealing is standard.

Technical parameters

Min. pressure: vacuum

Working mode: manual, or pneumatic

Size: 1/4”, 1/2”,1”1 1/2”2”

Internal surface finish: Ra 0.4μm

Connection  thread, clamp or weld
Max.Pressure 10bar    145PSI
Available   Temprature  -10°C to +120°C
Material SS304/SS316L
Seal PTFE,SILICON or EPDM
