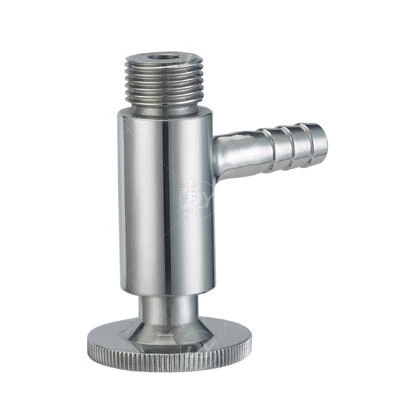

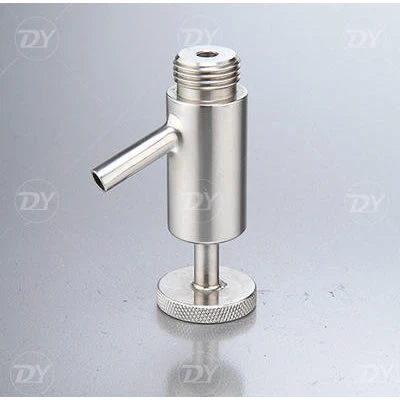

Sanitary Manual SS Sample Valve

Sampling valve is mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains.
Model:
SPV11-T
Contact Now
Sanitary Manual SS Sample Valve
Sanitary Manual SS Sample Valve
Sanitary Manual SS Sample Valve
Sanitary Manual SS Sample Valve

Applications

It is mainly applied to extract sample from tank or pipeline.Also,it can be assembled at the bottom of the tank or pipeline to drain away the remains.

Technical parameters

Connection type: thread, clamp, weld

Max. pressure: 10bar (145psi)

Min. pressure: vacuum

Working temperature: -10℃ to +120℃

Working mode: manual, or pneumatic

Size: 1/4”, 1/2”,1”1 1/2”2”

Body material: SS316L, or SS304

Seal material: PTFE, EPDM, Silicone

Internal surface finish: Ra 0.4μm

Advantages

This valve is self-draining in many positions where normal valves are not. It can even be installed upside down!

Clamp connection between body and head: No problem with threads and neutral valve position where preferred.
