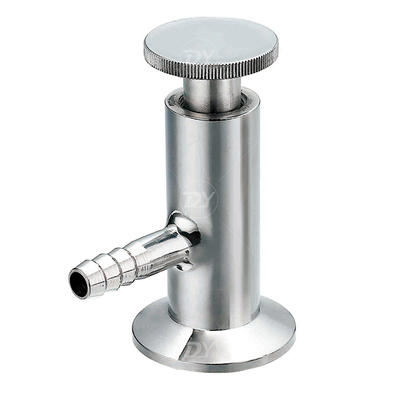

Sanitary Food Processing Clamped Sample Sampling Cock Valve

Sampling valve is mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains.
Model:
Contact Now
Sanitary Food Processing Clamped Sample Sampling Cock Valve
Sanitary Food Processing Clamped Sample Sampling Cock Valve
Sanitary Food Processing Clamped Sample Sampling Cock Valve
Sanitary Food Processing Clamped Sample Sampling Cock Valve

Applications

Sanitary sampling cock valve is mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains.

Introduction

This type of valves is used to obtain a sample of the medium in a pipe or equipment for the occasion of frequent chemical analysis. Sampling valve using the insulation jacket, but also should not be forced to open the valve, if the valve can not be opened, should not use the extension arm, which will cause the valve force is too large and lead to spool and stem off, Or lead to damage to the sampling parts, resulting in security risks. In the course of the use of the sampling valve, if you encounter the need to use the case of insulation jacket, it should be noted that the operation can not be completely melted in the media before the forced opening of the valve, the valve must wait until the crystal melt to open the valve, otherwise likely to cause Safety accident.

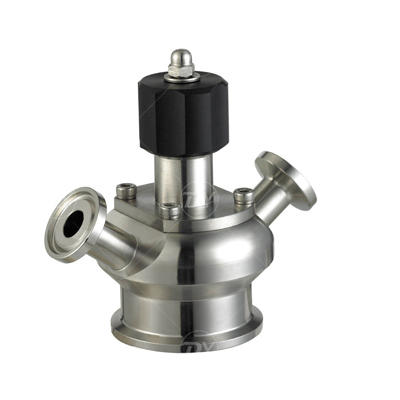

The valve is used with bioreactors for sampling of wide range of products. It comes with a mini tri-clamp connections on in-/outlets. Valve heads come with diffrent operations and membranes.

Technical Specification

Connection thread,clamp or weld
Max.Pressure 10bar 145PSI
Available Temprature -10°C to +120°C
Material SS304/SS316L
Seal PTFE,SILICON or EPDM
