Sanitary Stainless Steel Rotary Lobe Gear Constant Speed Ratio Rotor Pump

Rotor pump is also named rotary lobe pump, three lobe pump, sole pump, etc. When the 2simultaneous reverse rotating rotors (with 2-4gears) revolve, it produces suction force at the inlet (vacuum), which intakes the material delivered.
Model:
DY-ZB3A
Contact Now
Sanitary Stainless Steel Rotary Lobe Gear Constant Speed Ratio Rotor Pump

Application

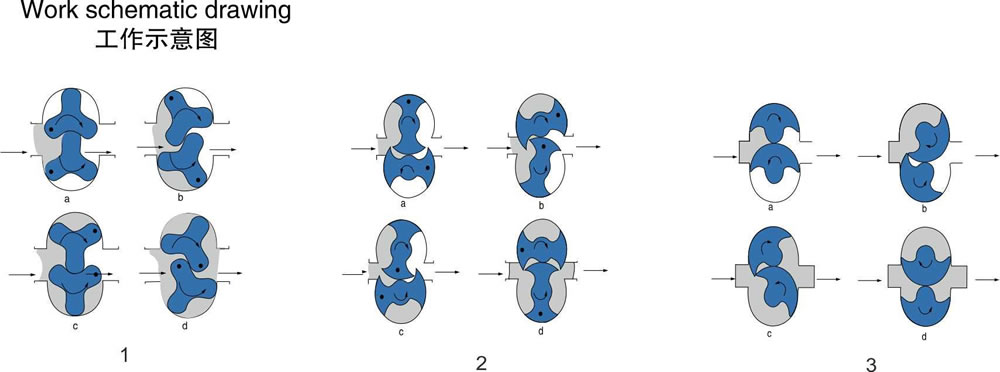

Rotor pump is also named rotary lobe pump, three lobe pump, sole pump, etc. This is called Gear Constant Speed Ratio Rotor Pump. When the 2simultaneous reverse rotating rotors (with 2-4gears) revolve, it produces suction force at the inlet (vacuum), which intakes the material delivered.

Technical parameters

Material: SS304, SS316L

Transmission type: motor + fix velocity ratio speed reducer; motor+ mechanical friction type stepless speed variator; frequency conversion motor + frequency converter.

Available motor: single wing, double wing, tri-lobe.

Working temperature: -20 to 150℃ (sterilization 180℃)

Gasket: Sillicon, EPDM, PTFE, Viton, etc., depending on medium.

Mechanical seal: Silicon-carbide, graphite-ceramic, etc.

Application: Food and beverage, fruit concentrates, paste products, cosmetics, medicine, chemical industry and others.

Main specifications

Model Flow per 100 Rotation(L) Suggestion Rotation Speed(RMP) Capacity(L/H) Power(KW)
ZB3A-3 3 200-500 300-800 0.55
ZB3A-6 6 200-500 650-1600 0.75
ZB3A-8 8 200-500 850-2160 1.5
ZB3A-12 12 200-500 1300-3200 2.2
ZB3A-20 20 200-500 2100-5400 3
ZB3A-30 30 200-400 3200-6400 4
ZB3A-36 36 200-400 3800-7600 4
ZB3A-52 52 200-400 5600-11000 5.5
ZB3A-66 66 200-400 7100-14000 7.5
ZB3A-78 78 200-400 9000-18000 7.5
ZB3A-100 100 200-400 10000-22000 11
ZB3A-135 135 200-400 15000-30000 15
ZB3A-160 160 200-400 17000-34000 18.5
ZB3A-200 200 200-400 21600-43000 22

Features and Benefits

Smallest Clearance

Our special alloy allows for the smallest clearance between rotors and casing.

Constant conveyance

Conveyance of all levels of viscosity

High Degree of Cleanability

Incredibly easy assembly/disassembly. Completely cleanable and sterilizable with CIP/SIP processes.

Standard: 95°C, High temperature: 150°C

Inside Seal

Precision pump – a high rigidity is reached by shortest distance between bearing and rotor.

Mechanical Seal

High durability and suitable for a wide range of liquids
