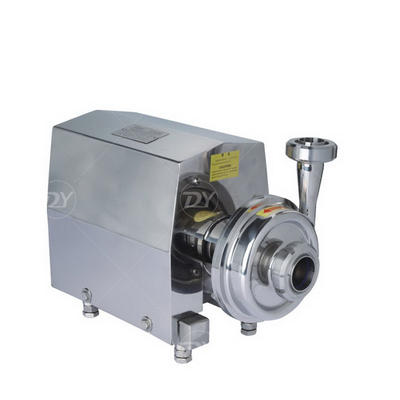

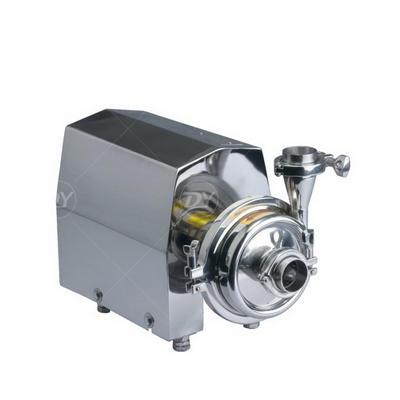

The centrifugal pump is manufactured in stainless steel and with a hrounded motor.It is sanitary and cost-efficient design makes it perfect for dairies, beverages, food-processing, pharmaceutical and fine chemicals industries
Part material contact with pumped media: AISI316L/304
Gasket: EPDM, FPM, VITON, etc., in accordance with FDA.
Impeller design: open type, or close type
Mechanical seal(standard): C/SIC/EPDM
Mechanical seal mode: Single end mechanical seal. ( Flushed double mechanical seal are available.)
Inside surface finishing: Ra ≤0.8μm
Inlet & outlet connection: clamp, union,, flange ( standard can be DIN, SMS, RJT, IDF)
Outside surface finishing: Sandblast or mirror polishe
Operating principles: Housed inside the casing, the impeller rotates in conjunction with the pump shaft. With this arrangement, the impeller blades convey energy to the fluid in the form of kinetic energy and pressure energy.
This pump is not reversible by simple reversal of the direction of rotation. The direction of rotation is clockwise when the pump is viewed from the rear side of the motor.
Max. flow: 130m3/H
Max. head: 70H(m) for open impeller, 100H(m)for close impeller
Max. temperature: 120℃
Max. rev: 3600min -1
Casing manufactured with cold-formed plate. Open impeller and close impeller manufactured with stainless steel investment casting.
Adjustable stainless steel legs. Pump designed according to 3A sanitary standards. IEC or NEMA B35 motor, IP55, Grade-F insulation, etc.
