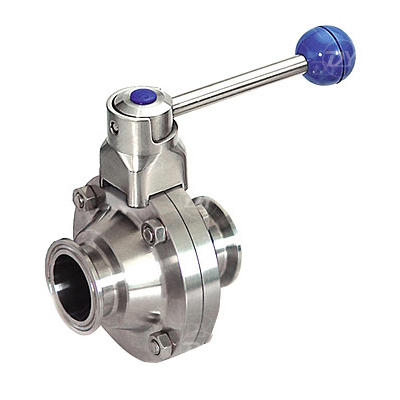

China Sanitary Stainless Steel Butterfly Ball Valves

Sanitary butterfly ball valve is manual or pneumatic, use for stainless steel pipe system. best choice for medium with emplastic and grain in sanitary area. it is for food, drink, pharmacy and chemical
Model:
DY-BVBF-T
Contact Now
China Sanitary Stainless Steel Butterfly Ball Valves
China Sanitary Stainless Steel Butterfly Ball Valves
China Sanitary Stainless Steel Butterfly Ball Valves

pplication

Sanitary butterfly ball valve is manual or pneumatic, use for stainless steel pipe system. best choice for medium with emplastic and grain in sanitary area. it is for food, drink, pharmacy and chemical.

Operating Principle

Sanitary Butterfly ball valve, manual and pneumatic control. simple structure like butterfly valve. disassembly easily. with ball valve less resistance, flexible opening, use to more area, and long life time. with setting for drainage. no medium remaining.

Technical parameters

Driving mode: manual

Connection standard: DIN, 3A, SMS, ISO, RJT

Connection type: clamp

Material: SS304, SS316L

Port size: 1”-4”, DN25-DN100

Gasket material: Silicone, EPDM, MBR, PTFE, Viton. All are FDA approved.

Max.pressure: 10bar

Temperature range: -20℃ to 120℃

Inside surface finish: Ra.0.4
