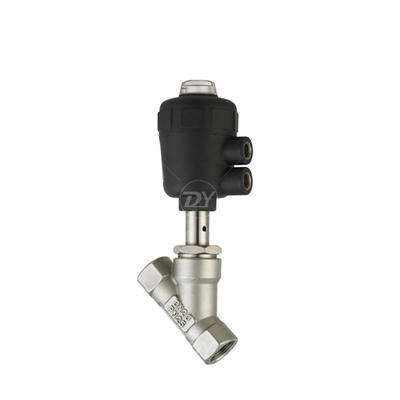

Sanitary Stainless Steel Pneumatic Angle Seat Valve

Angle seat valves are widely used in the condition of frequent start-up in short time. It is responsive and acting accurately.
Model:
DY-AGSV-3
Contact Now
Sanitary Stainless Steel Pneumatic Angle Seat Valve
Sanitary Stainless Steel Pneumatic Angle Seat Valve
Sanitary Stainless Steel Pneumatic Angle Seat Valve
Sanitary Stainless Steel Pneumatic Angle Seat Valve
Sanitary Stainless Steel Pneumatic Angle Seat Valve

Application

Angle seat valves are widely used in the condition of frequent start-up in short time. It is responsive and acting accurately.

Features

Large flux, low resistance, no water-hammer

Y type shape enlarged the flowing section, which could raise the flux by 30% and make flow more smooth.

Super long working life

Which help the stem adjust and lubricate itself automatically

The cylinder material is stainless steel

Lubricating automatically 360° roling freely.

Technical parameters

Fluid pressure: 0-1.6Mpa

Control pressure: 0.3-0.8Mpa

Body material: SS304, SS316L

Size: DN10-DN100

Sealing material: PTFE

Actuator Material: SS304, Polyamide PA, Aluminum

Fluid Temperature: -20℃ ~180℃, 25℃~220℃

Ambient temperature: -20℃~80℃

Fluid viscosity: ≤600mm /s

Control type: normally close, normally open, double acting, Manual type

Connection: Screw ends, welding ends, tri-clamp, flange

Application: Water, alcohol, oil, fuel, steam, neutral gas or liquid, organic solvent, acid and lye

Optional accessories: Proximity switch solenoid valve manual travel limit.

The Body Material SS304/SS316L
Seal Material PTFE
The Shell of Actuator Polyamide and Stainless steel
Range of Pressure 0-2.5Mpa(PN0-PN25)
Medium Temperature Nomal Type -20°C to +180°C
High Temperature -20°C to +300°C
Environment Temperature -10°C to +60°C
