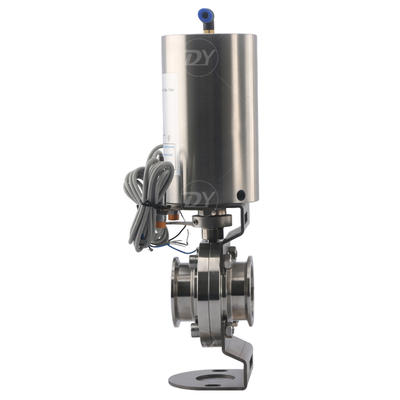

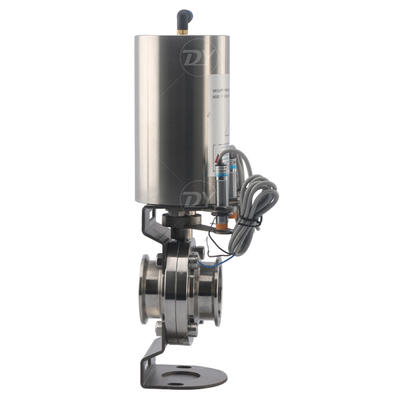

Sanitary Welding Pneumatic Butterfly Valve

Our Butterfly valve body could be offered with weld end, male end, female end and clamp end.

Application

Our Butterfly valve body could be offered with Weld end, Male end, female end, and Clamp end. Our butterfly valves can be installing with different type handles like 4 position pull handle, 12 position gripper handle and 10 more other types or installing with actuator for automatically control for your widely using.

The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.

Design features

  1. The seat and gasket can be NBR (Nitrile), VMQ (Silicone) or Viton (FPM) all complying with FDA 21CFR177.2600.
  2. End connection can be butt-welded, sanitary clamp, threaded, flanged, I-line or others upon request.
  3. Handle: 3-position pull handle; multi-position handle in either pure stainless steel or with plastic cover.

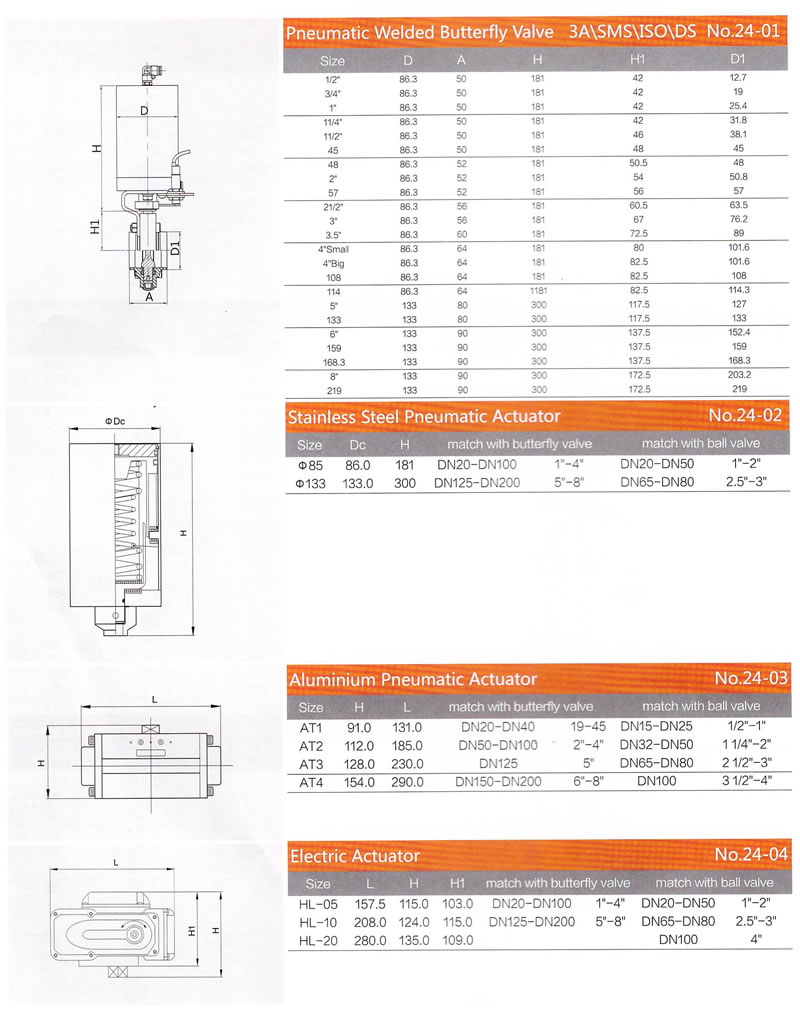

  4. Actuator: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), electric actuator.
  5. Control: position sensor, C-top controller, C-top controller (AS-I)
