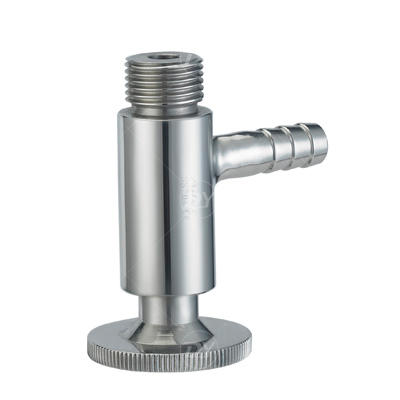

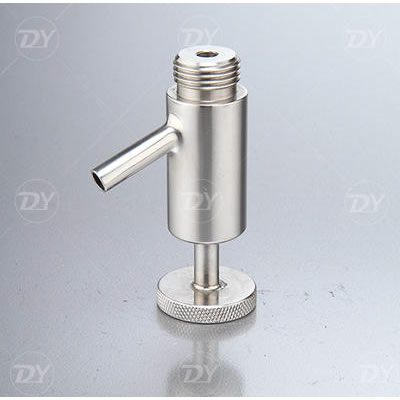

Sanitary SS Male Threading Sampling Valve

Sampling valve is mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains.
Model:
Contact Now
Sanitary SS Male Threading Sampling Valve
Sanitary SS Male Threading Sampling Valve
Sanitary SS Male Threading Sampling Valve
Sanitary SS Male Threading Sampling Valve

Applications

Sampling valve is mainly applied to extract sample from tank or pipeline. It also can be assembled at the bottom of the tank or pipeline to drain away the remains.

Technical parameters

Connection thread,clamp or weld
Max.Pressure 10bar 145PSI
Available Temprature -10°C to +120°C
Material SS304/SS316L
Seal PTFE,SILICON or EPDM

Introduction

The valve is the standard sampling valve, the valve others are designed for sampling medium viscosity products, with particles up to 3 mm in diameter, if fitted with PTFE membrane and 2mm when fitted with silicone or EPDM membrane. This valves are mostly used for products that have about 0-1,000cP in viscosity.
