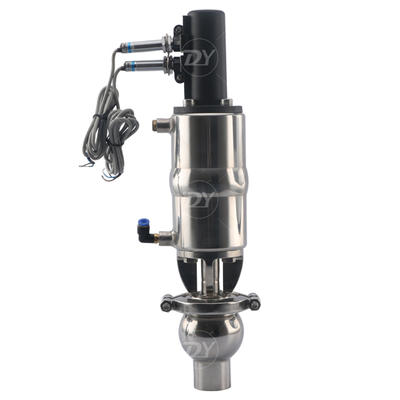

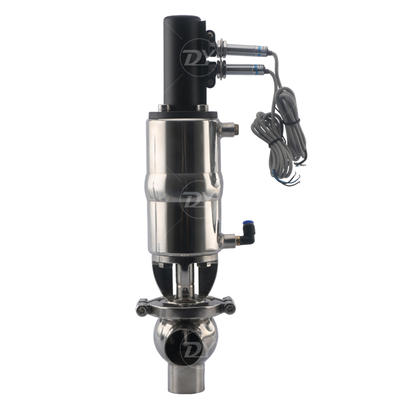

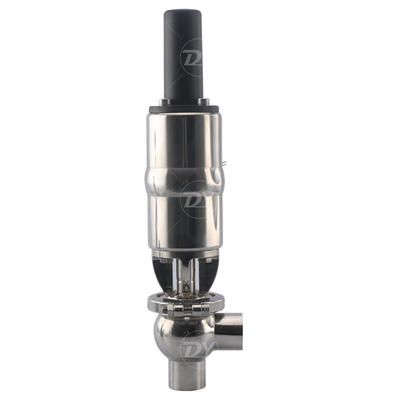

Sanitary Pneumatic Stainless Steel welding shut Off Valve

The series of valves are major let the medium reach the purpose of reversing or end stop, because the good sealing performance and cleanability, they are extensively use to different sanitary industry areas. The flow diversion valves are widely used in food, beverage, dairy, bio-tech, pharmacy industries.

Application

The series of valves are major let the medium reach the purpose of reversing or end stop, because of the good sealing performance and cleanability, they are extensively used to different sanitary industry areas. The flow diversion valves are widely used in food, beverage, dairy, biotechnology, pharmacy industries.

Working principle

The series of pneumatic cut off reversing valve change the energy which process by compressed air to the mechanical energy, the mechanical energy can drive the valve rod axial moving, thus move the different location of seal elements, which can control the switch for inlet of pipeline, finally realize the purpose of medium reversing or stop.

The manual cut-off reversing valve series control by handle also reach the purpose of medium reversing or stop at the end.

Technical parameters

Body material: SS304, or SS316L

Size: 1”-4”or DN25-DN100

Connection type: Clamped, Welding, thread

Working mode: Manual, Pneumatic.

Seal Material: PTFE, EPDM, NBR, Silicone.

Surface: Mirror polish, or sand blasting type.
