Stainless Steel Air Actuated Threaded Butterfly Valve

Our Butterfly valve body could be offered with weld end, male end, female end and clamp end.
Model:
DY-BFV-T3
Contact Now
Stainless Steel Air Actuated Threaded Butterfly Valve

Application

Our Butterfly valve body could be offered with Weld end, Male end, female end, and Clamp end. Our butterfly valves can be installing with different type handles like 4 position pull handle, 12 position gripper handle and 10 more other types or installing with actuator for automatically control for your widely using.

The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.

All of the products have been 100% press tested before shipping.

It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.

Operatiing Principles

The butterfly calves can be operated automatically through actuator or manually with the handle.The handle blocks the valve in the "open" or "closed" position,certainly,there are othe position available. The actuator push piston of axial movement into 90 degree so that it controls butterfly valve.

Options

The Material of Gasket NBR All complying with FDA 21CFR177.2600
VMQ
FPM
End connection Weld Others upon request.
Clamp
Thread
Flange

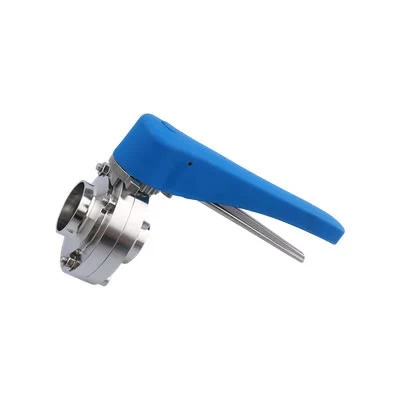

Handle 3-position pull handle
multi-position handle

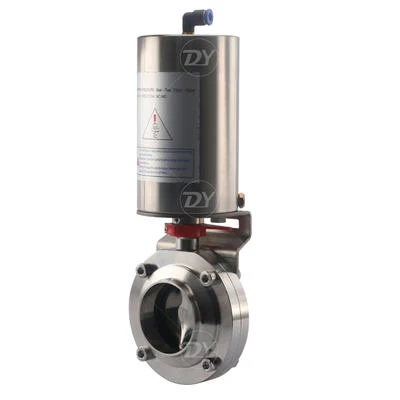

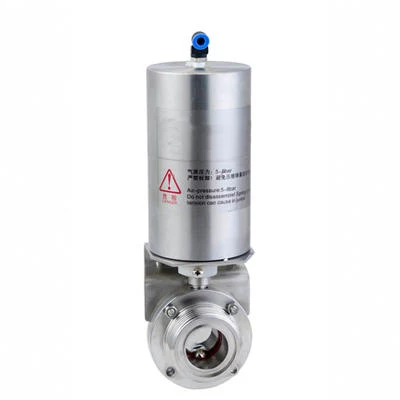

Actuator Pneumatic Stainless Steel Actuator (vertical type)
Pneumatic Aluminum Actuator (horizontal type)
Electric Actuator
Control position sensor
C-top controller
C-top controller (AS-I)

Feedback
