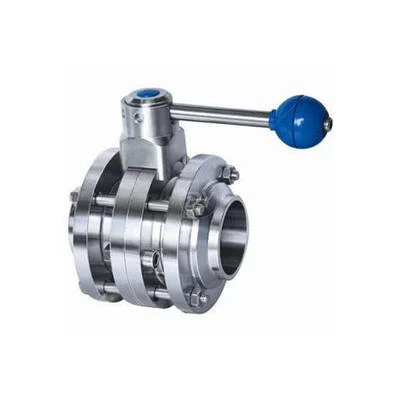

Sanitary Three Piece Welding Butterfly Valve

Our Butterfly valve body could be offered with weld end, male end, female end and clamp end.
Model:
DY-BFV3P-W1
Contact Now
Sanitary Three Piece Welding Butterfly Valve

Application

Butterfly valves can be actuated either manually or pneumatically. There is a wide range of manual controls to meet the different system requirements. Pneumatic controls can be horizontal and vertical, single-, double-effect, and modulating. They can be fitted with control tops and proximity It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.

Design features

Standard 3A,SMS,DIN,ISO,RJT,IDF
Product   Wetted Steel Parts AISI304/AISI316L Provided    with material inspection report
Other Steel   Parts AISI304
Size 1/2"~6",DN10~DN150
Seal   material EPDM/VMQ/FPM All seals material comply with   FDA21CFR117.2600
Working   pressure ≤10bar(145psi)
Working   temperature PDM:-14~248ºF(-10~120ºC)
VMQ:-58~356ºF(-50~180ºC)
FPM:22~446ºF(-30~230ºC)
Other   materials are avaible upon request
Sterilization   temperature 302ºF(150ºC,max 20min)
Outside   surface treatment Ra16~32uin(o.4~0.8um)
nside surface   treatment Ra32~64uin(o.8~1.6um)
Connetion   ends butt-weld,clamped ends,male   ends, flange ends
neumatic   head Normally closed(NC)-Air to   open,spring to close
Normally   open(NO)-Air to close,spring to open
Air   to air(AA)-Air to open,air to close

Options:

  1. The seat and gasket can be NBR (Nitrile), VMQ (Silicone) or Viton (FPM) all complying with FDA 21CFR177.2600.
  2. End connection can be butt-welded, sanitary clamp, threaded, flanged, I-line or others upon request.
  3. Handle: 3-position pull handle; multi-position handle in either pure stainless steel or with plastic cover.
  4. Actuator: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), electric actuator.
  5. Control: position sensor, C-top controller, C-top controller (AS-I)
