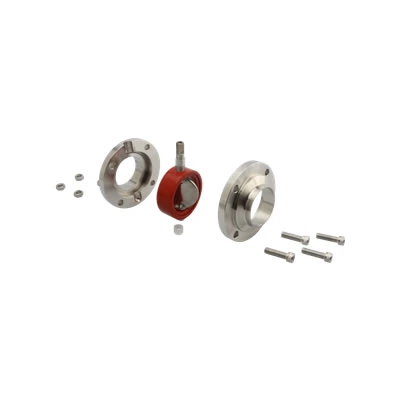

Sanitary Stainless Steel Three Way Butterfly Valve With Blue Plastic Pull Handle
Our Butterfly valve body could be offered with weld end, male end, female end and clamp end.
Technical Parameters:
| Product Wetted Steel Parts | AISI304/AISI316L | Provided with material inspection report | |||||
| Other Steel Parts | AISI304 | ||||||
| Size | 1/2"~6",DN10~DN150 | ||||||
| Seal material | EPDM/VMQ/FPM | ||||||
| Working pressure | ≤10bar(145psi) | ||||||
| Working temperature | PDM:-14~248ºF(-10~120ºC) | ||||||
| VMQ:-58~356ºF(-50~180ºC) | |||||||
| FPM:22~446ºF(-30~230ºC) | |||||||
| Other materials are avaible upon request | |||||||
| Sterilization temperature | 302ºF(150ºC,max 20min) | ||||||
| Outside surface treatment | Ra16~32uin(o.4~0.8um) | ||||||
| Inside surface treatment | Ra32~64uin(o.8~1.6um) | ||||||
| Connetion ends | butt-weld,clamped ends,male ends, flange ends | ||||||
| Pneumatic head | Normally closed(NC)-Air to open,spring to close | ||||||
| Normally open(NO)-Air to close,spring to open | |||||||
| Air to air(AA)-Air to open,air to close | |||||||
