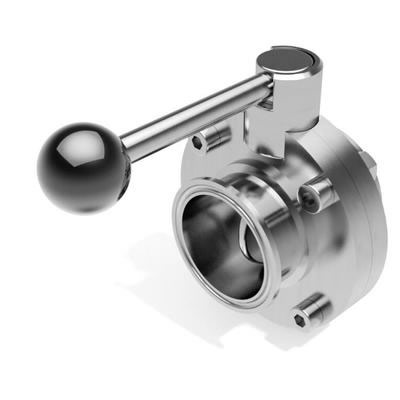

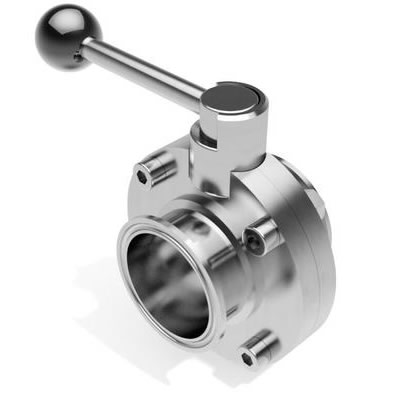

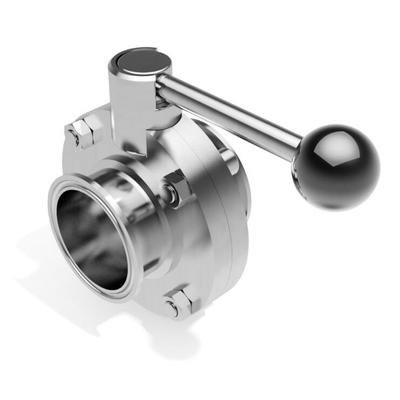

Sanitary Stainless Steel Clamped Butterfly Valve With Pull Handle

Our Butterfly valve body could be offered with weld end, male end, female end and clamp end.
Model:
DY-BFV-C1
Contact Now

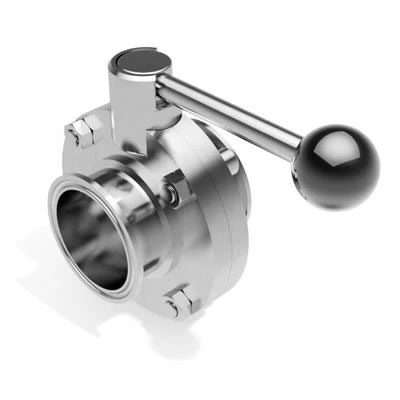

Sanitary Stainless Steel Clamped Butterfly Valve With Pull Handle
Sanitary Stainless Steel Clamped Butterfly Valve With Pull Handle
Sanitary Stainless Steel Clamped Butterfly Valve With Pull Handle
Sanitary Stainless Steel Clamped Butterfly Valve With Pull Handle
Sanitary Stainless Steel Clamped Butterfly Valve With Pull Handle

Application

Our Butterfly valve body could be offered with Weld end, Male end, female end, and Clamp end. Our butterfly valves can be installing with different type handles like 4 position pull handle, 12 position gripper handle and 10 more other types or installing with actuator for automatically control for your widely using.

Butterfly valves can be actuated either manually or pneumatically. There is a wide range of manual controls to meet the different system requirements. Pneumatic controls can be horizontal and vertical, single-, double-effect, and modulating. They can be fitted with control tops and proximity The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.

All of the products have been 100% press tested before shipping.

It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries

Design features And Parameters

Standard 3A,SMS,DIN,ISO,RJT,IDF
Product Wetted Steel Parts AISI304/AISI316L Provided with material inspection report
Other Steel Parts AISI304
Size 1/2"~6",DN10~DN150
Seal material EPDM/VMQ/FPM All seals material comply with FDA21CFR117.2600
Working pressure ≤10bar(145psi)
Working temperature PDM:-14~248ºF(-10~120ºC)
VMQ:-58~356ºF(-50~180ºC)
FPM:22~446ºF(-30~230ºC)
Other materials are avaible upon request
Sterilization temperature 302ºF(150ºC,max 20min)
Outside surface treatment Ra16~32uin(o.4~0.8um)
nside surface treatment Ra32~64uin(o.8~1.6um)
Connetion ends butt-weld,clamped ends,male ends, flange ends
neumatic head Normally closed(NC)-Air to open,spring to close
Normally open(NO)-Air to close,spring to open
Air to air(AA)-Air to open,air to close
