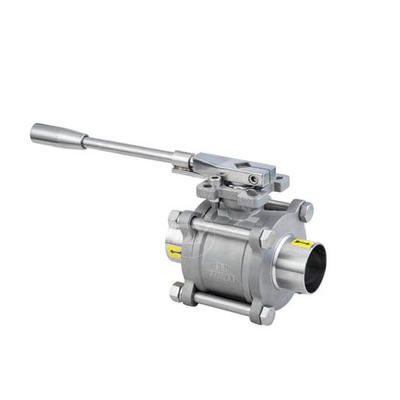

Stainless Steel Three-Piece Sanitary Tri-Clamp Ball Valve with ISO5211 Mounting Pad

3-piece sanitary ball valve with ISO direct mounting pad is designed for food biological, pharmaceutics or similar industries.
Model:
DY-BV3P-C
Contact Now
Stainless Steel Three-Piece Sanitary Tri-Clamp Ball Valve with ISO5211 Mounting Pad

Application

3-piece sanitary ball valve with ISO direct mounting pad is designed for food biological, pharmaceutics or similar industries. The cavity filled seat option will help not to remain the media in the body cavity to keep from spoiling or mixing. Cavity filler seats will also help to clean the valve port easily.

The options on end types can be T-Clamp, Tube weld end, Extended tube weld end. Different material of soft kits will be applicable for different working circumstance.

ASME/ BPE (for SS316L) standard are available on 302SD, with low ferrite ( 3%), and low sulphur (0.005% to 0.017%). The finish are available for Ra 40 uin or Ra 25 u-in.

The standard bare stem type is well designed for mounting actuator directly.

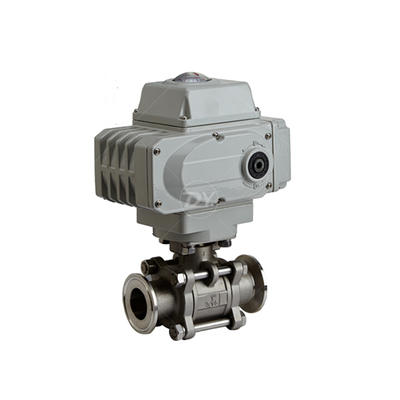

DEYI offer pneumatic/ electric actuator and limit switch box/ solenoid valve/ modulating controller....assembling without further charge.

Technical parameters

Design and features

  • Body & end caps quality investment casting
  • with ISO 5211 direct mounting pad
  • Adjustable stem packing
  • Available in stainless steel or carbon steel
  • Blow-out proof stem design
  • 100% air tested under water at 80-100 psi
  • with locking function
  • End type: T-Clamp, Tube weld, Extended tube weld 6 bolts & nuts for 4" valve
Working pressure 1000/ 800/ 600 psi
Temperature range (PTFE)  -20F to 350F
Temperature range (TFM) -20F to 420F

Options

  • Spring return handle (dead man handle)
  • Oval handle
  • Cavity filled seats
  • Polish to custom's specification
  • ASME/ BPE (for SS316L)
  • low ferrite ( 3%)
  • low sulphur (0.005% to 0.017%)

Automation application

  • PTFE/ PFA coating (40-70 um)
  • Hastalloy C/ Super duplex/ Alloy 20/ Monel
