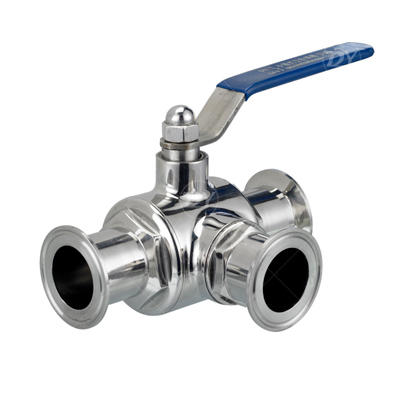

Stainless steel hygienic 3-way ball valve

Both manual and automatic operated hygienic ball valves are mainly used in processing beverage, wine, oil refining, cosmetics and chemical industries.
Model:
DY-BV3W
Contact Now
Stainless steel hygienic 3-way ball valve
Stainless steel hygienic 3-way ball valve
Stainless steel hygienic 3-way ball valve

Application

Both manual and automatic operated hygienic ball valves are mainly used in processing beverage, wine, oil refining, cosmetics and chemical industries. The non retention ball valve has features of easy cleaning, easy maintenance and light weight.

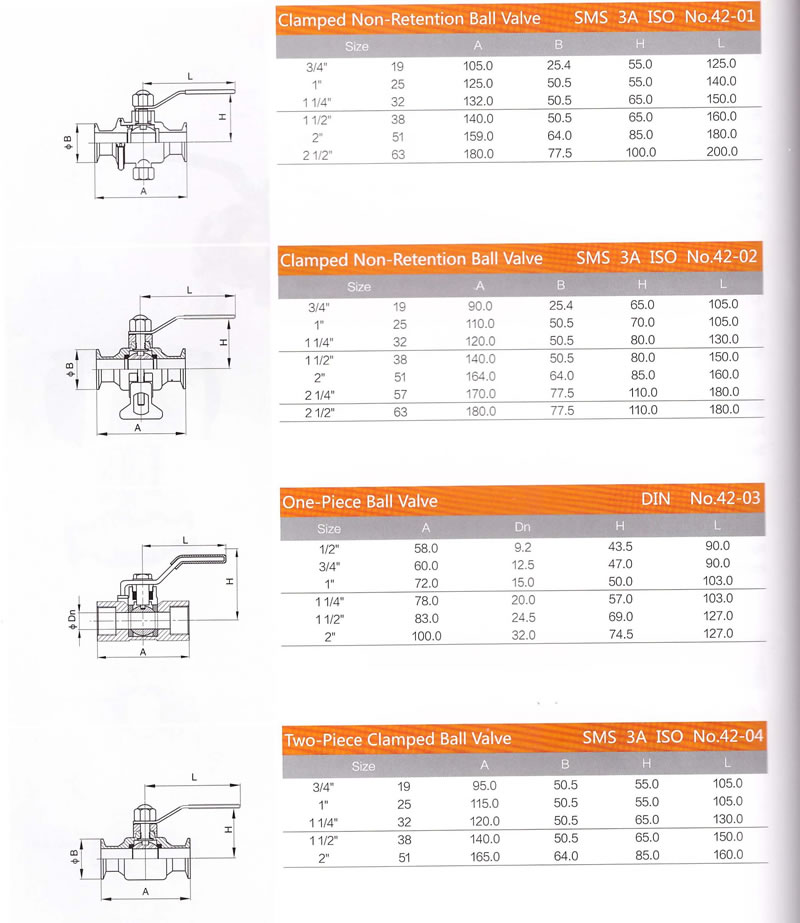

Technical parameters

  • Driving mode: manual
  • Connection standard: DIN, 3A, SMS, ISO, RJT
  • Connection type: clamp, weld, thread
  • Material: SS304, SS316L
  • Port size: 1”-4”, DN25-DN100
  • Gasket material: Silicone, EPDM, MBR, PTFE, Viton. All are FDA approved.
  • Max.pressure: 10bar
  • Temperature range: -20℃ to 120℃
  • Inside surface finish: Ra.0.4
